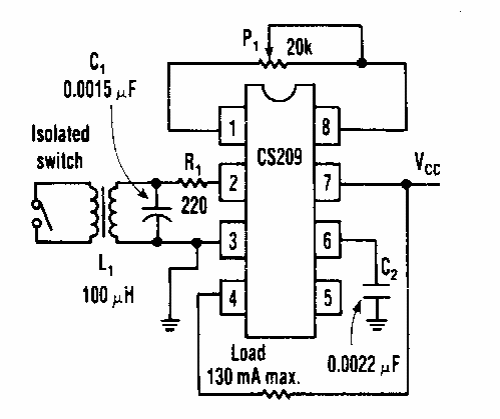

This fully isolated control circuit provides an output signal by triggering a 130 mA relay when the switch is closed. The circuit is supplied with voltage from 9 to 12 V depending on the relay.
Switch lock circuit (CB20904E)
- Details
- Written by: Newton C. Braga
