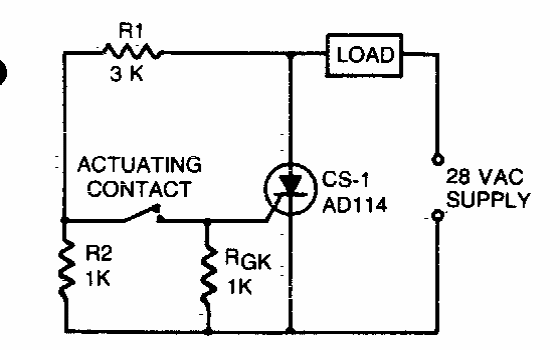

This control circuit for AC loads with SCR was obtained in a documentation from the 1970s. The SCR can be a modern equivalent and the input voltage depends on this component and the controlled load.
SCR AC switch (CB20706E)
- Details
- Written by: Newton C. Braga
