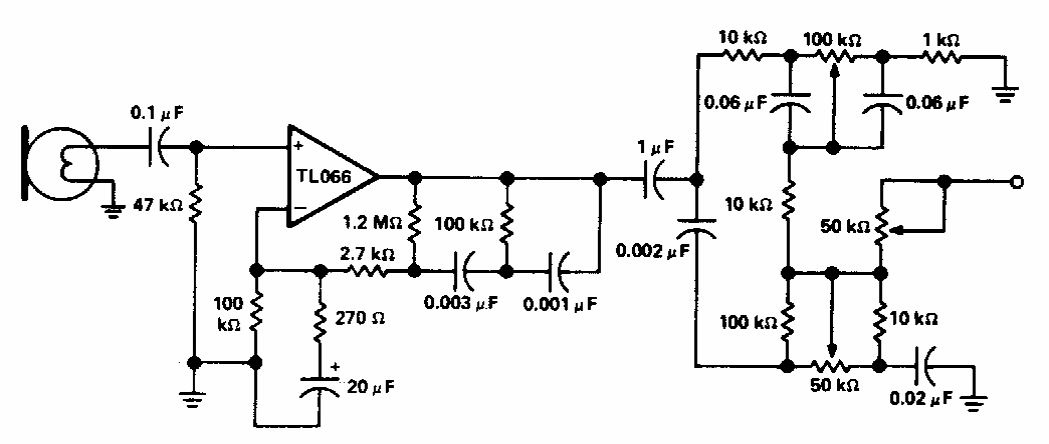

Tone-controlled microphone amplifier (CB20806E)

This circuit was found in American documentation from the 1980s. The integrated circuit used is still common today, but equivalents can be used.

| Clique na imagem para ampliar |
