100 kHz quadrature oscillator (CB20614E)

Details
Written by: Newton C. Braga

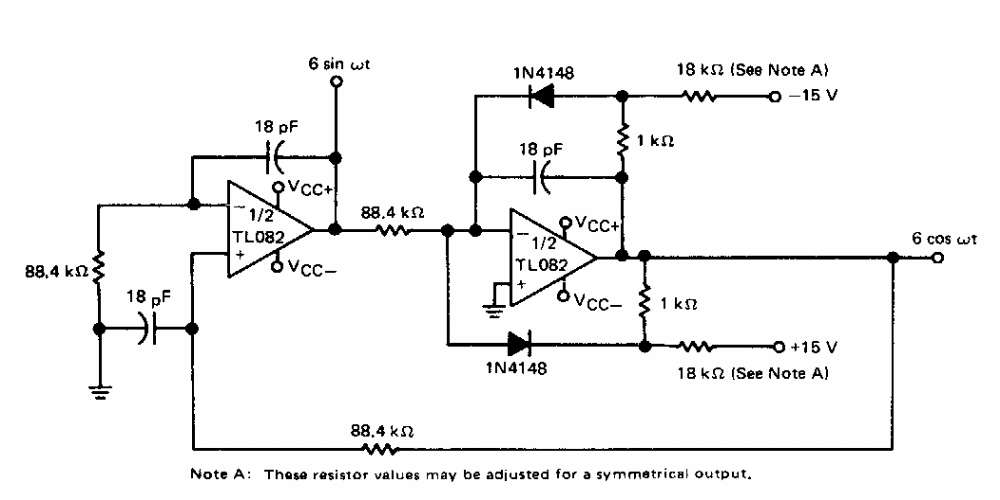

This circuit generates quadrature signals, that is, with a 90-degree phase difference. The circuit must be powered by a symmetrical source and the frequency depends on the capacitors.




| Clique na imagem para ampliar |
