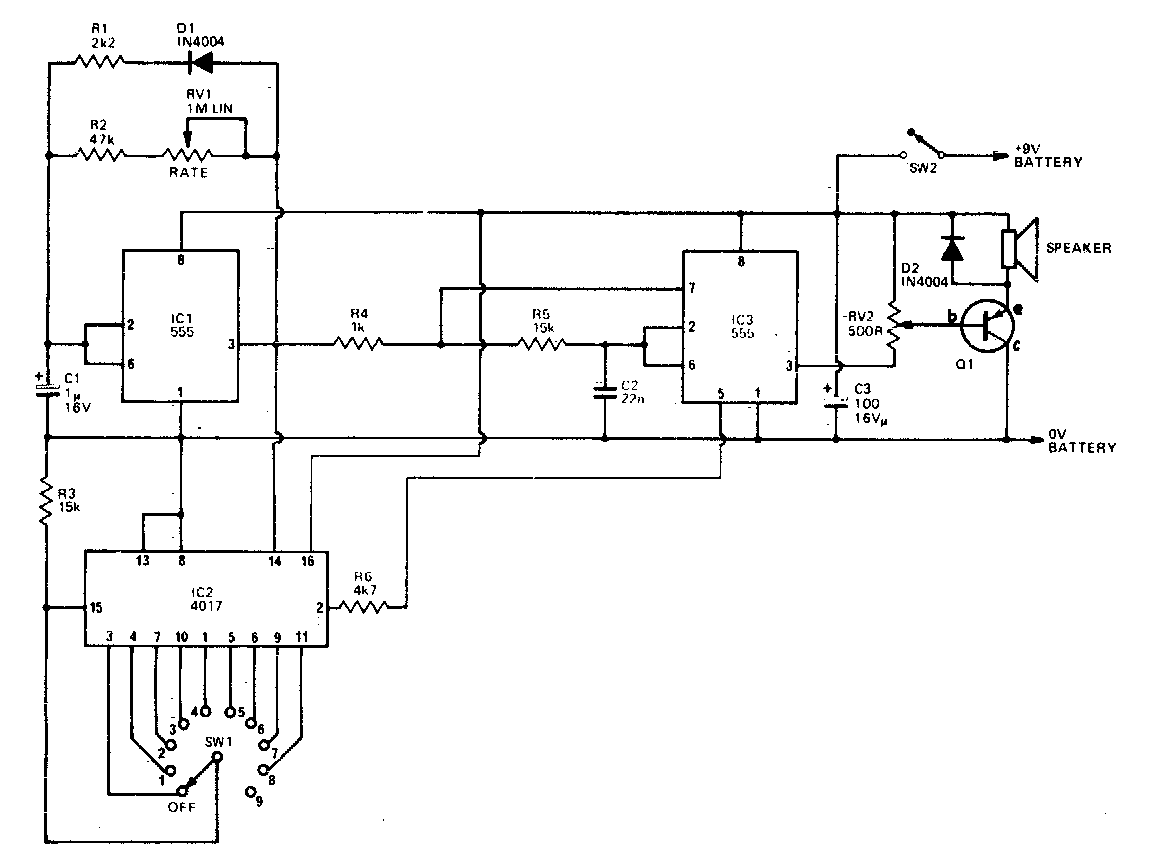

Found in British documentation two years 70, this circuit generates two beats, being one of 800 Hz and another of 2500 Hz in programmed measures number 4017. The circuit includes a small amplification stage.
| Clique na imagem para ampliar |
Accent Metronome (CB20741E)
- Details
- Written by: Newton C. Braga
