Output indicator 555 (CB20967E)
- Details
- Written by: Newton C. Braga

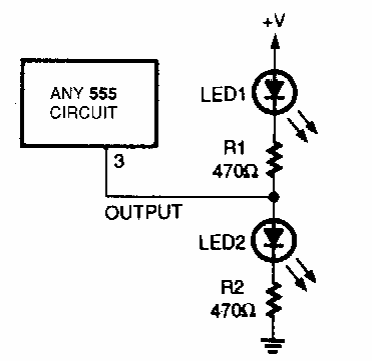

Found in Popular Electronics from the 90s, this circuit serves to indicate the output level of a 555 integrated circuit. It can also function as an alternating blinker.
