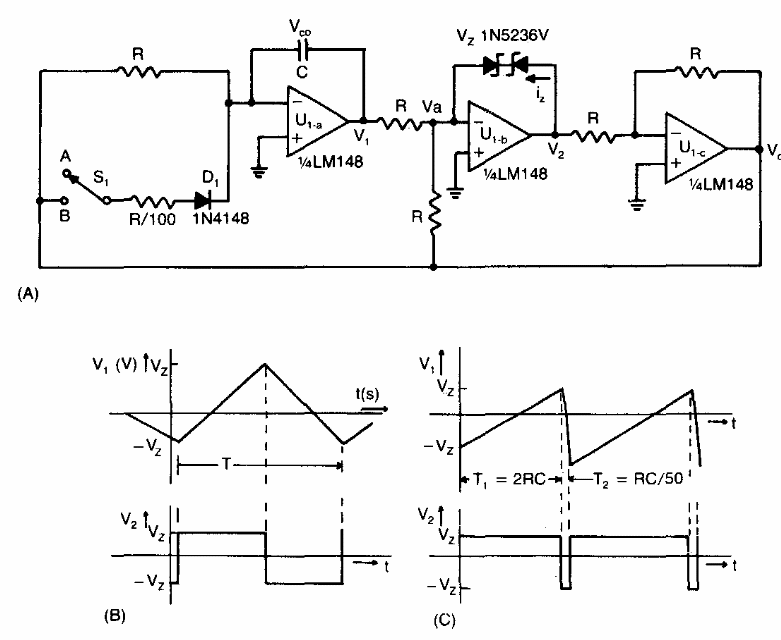

This circuit is based on documentation from the 1980s. It can be designed with modern operational equivalents. The source is symmetrical and next to the diagram are the waveforms of the generated signals.
| Clique na imagem para ampliar |
Function generator LM148 (CB20613E)
- Details
- Written by: Newton C. Braga
