High power LED flasher (CB20944E)

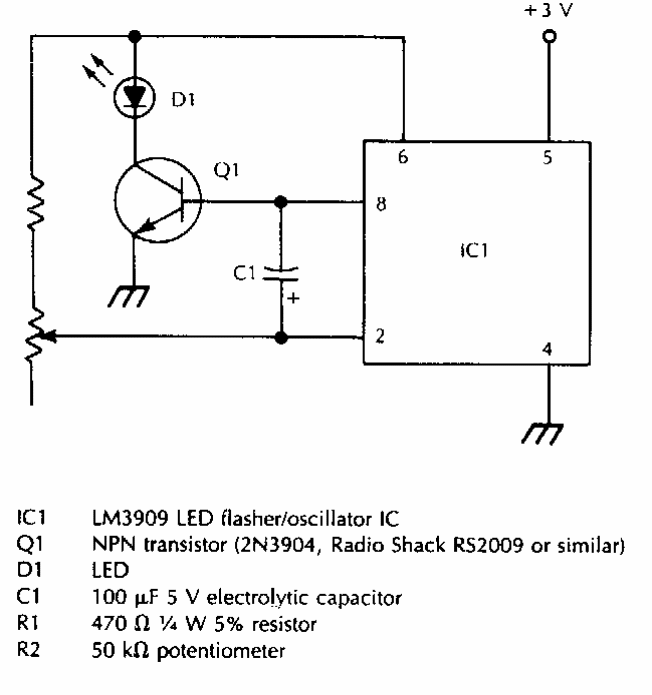

Found in American documentation from the 1980s, this circuit shows how to use an LM3909 pulsator in a high-power variable circuit.

| Clique na imagem para ampliar |

Sequential unijunction timer (CB10190E)
This circuit with unijunction transistors was found in a documentation from the 80's. The trigger...
Video driver with impedance matching (CB20915E)
In this circuit of an old American documentation, the input impedance is the same as the output...
18 V Voltage Doubler (CB20180E)
In the figure we have the way to obtain a voltage of 18 V from a 6.3 V transformer with central...
