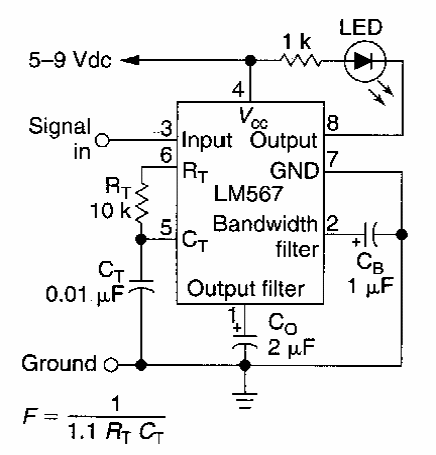

15 kHz tone detector (CB20902E)
- Details
- Written by: Newton C. Braga
This circuit was found in an Electronics Now from the 80's. The frequency depends on the components indicated in the formula. Observe the supply voltage range.
