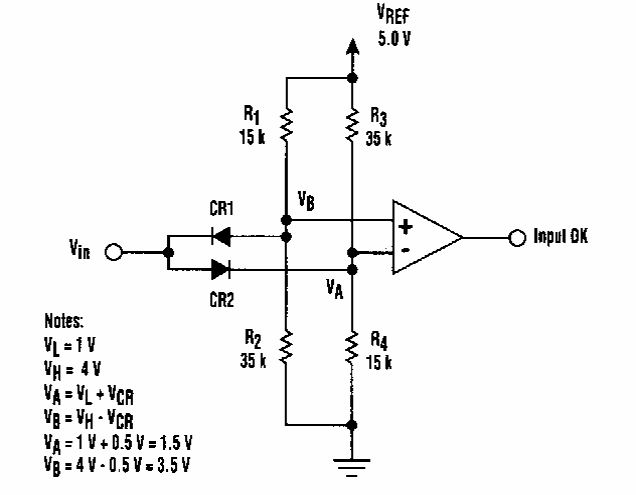

In the figure we have a window detector that uses only a voltage comparator. The circuit can use any type of comparator and the operating characteristics are given next to the diagram.
Window detector using one comparator (CB20901E)
- Details
- Written by: Newton C. Braga
