Baxandall tone control (CB20804E)

Details
Written by: Newton C. Braga

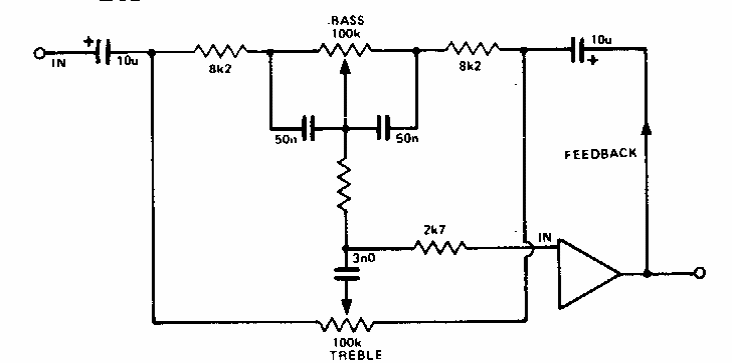

In the figure we have the typical circuit of a Baxandall tone control applied to an operational amplifier. The operational can be of any type.
