Bike speedometer (CB20497E)

Details
Written by: Newton C. Braga

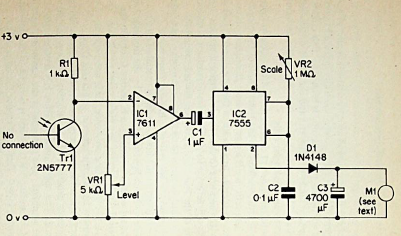

This circuit can be powered by a solar cell. The circuit is from a 1991 documentation having a phototransistor as sensor.
