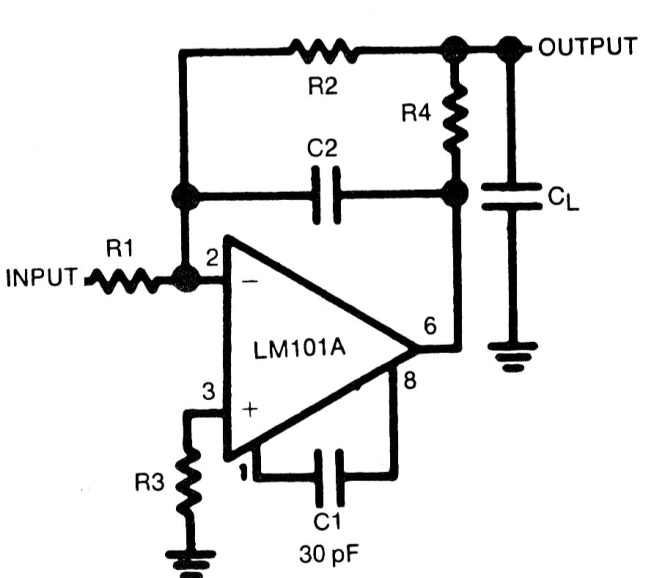

This circuit isolates capacitive loads of high values. We found this configuration in an application from the 70s, using an operational device of the time. More modern operating systems can be used, and the power supply must be symmetrical.
