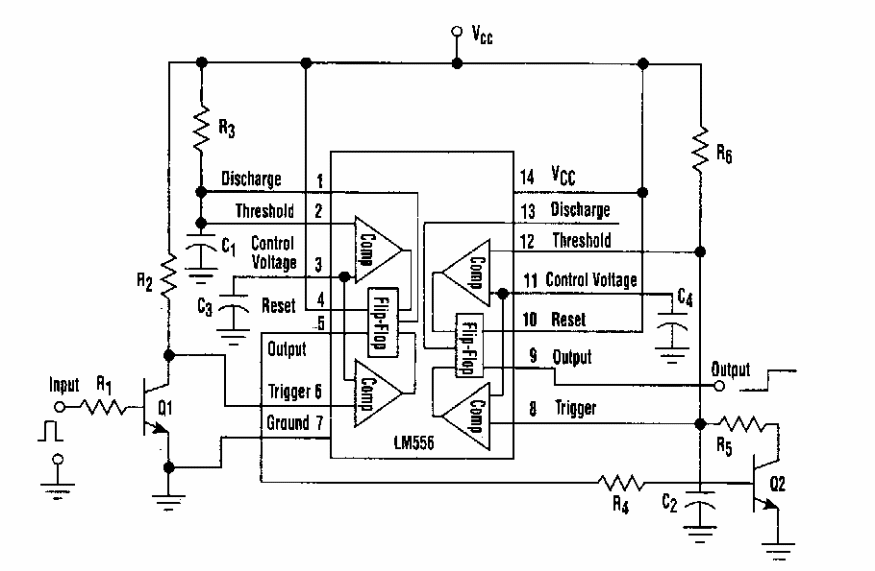

The 556 integrated circuit is a double 555. The heats of the components depend on the frequency and the application. The circuit is from an Electronic Design that does not provide more information.
| Clique na imagem para ampliar |
Frequency detector 556 (CB20900E)
