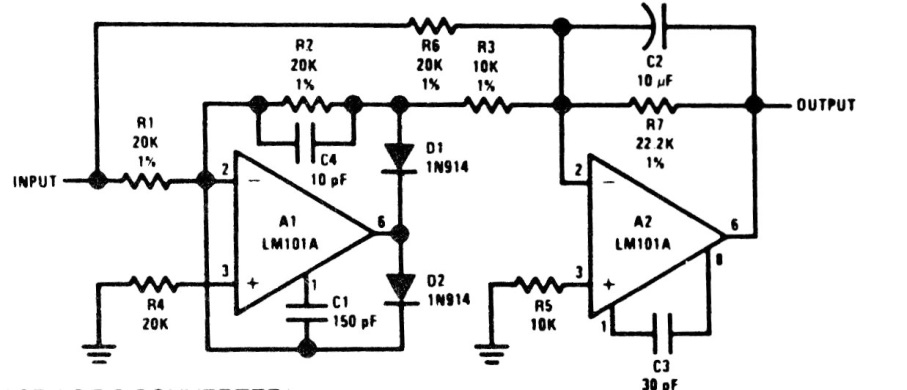

This fast AC / DC converter is suitable for instrumentation applications. The circuit uses operational amplifiers from the 70s and can be implemented with more modern ones. The power supply must be symmetrical.
| Clique na imagem para ampliar |
AC DC Converter (CB20356E)
- Details
- Written by: Newton C. Braga
