Triac Dimmer 1 (CB20703E)

Details
Written by: Newton C. Braga

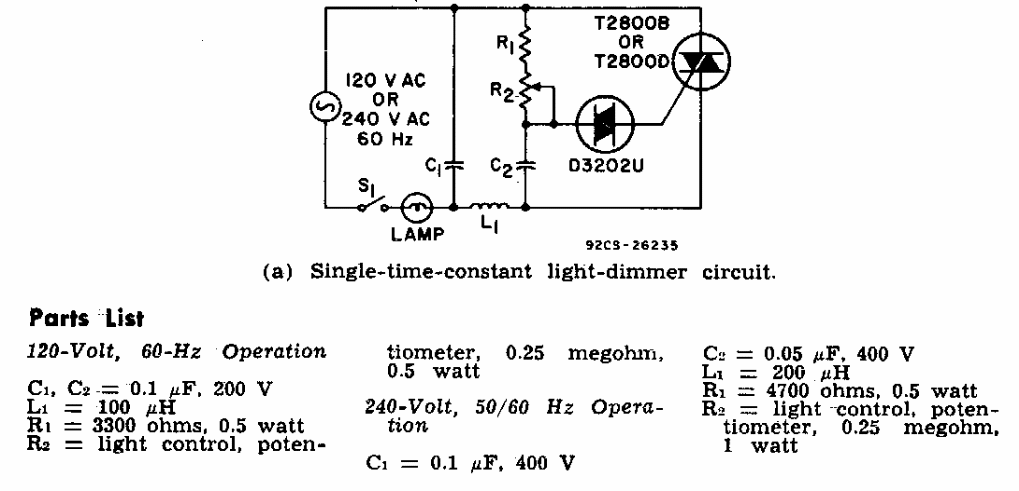

Found in documentation from the 1980s, this circuit is used for resistive loads (incandescent lamps). The triac must be equipped with a heat sink.
