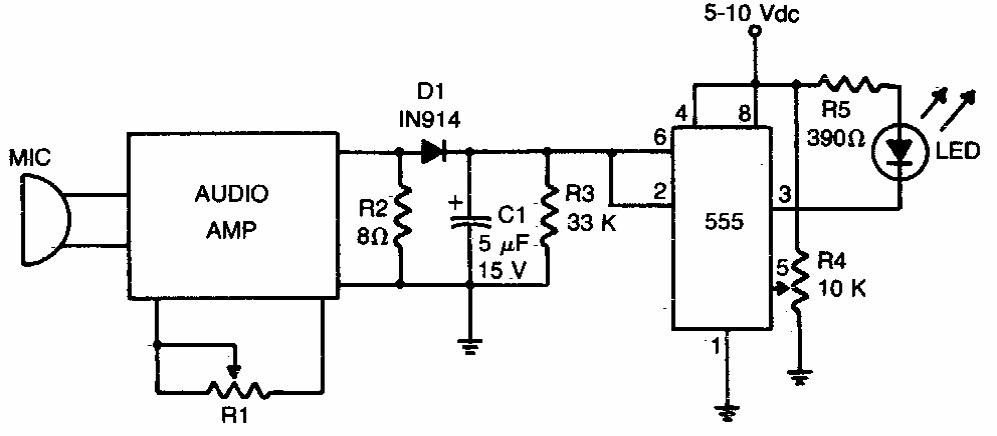

Sound level indicator (CB20737E)

Details
Written by: Newton C. Braga



Any small sound amplifier from 200mW to 1W can be used in this simple circuit. Or circuit of two 80s based on a trigger like 555.






| Clique na imagem para ampliar |
