Voltage-controlled low-pass filter (CB20940E)

Details
Written by: Newton C. Braga

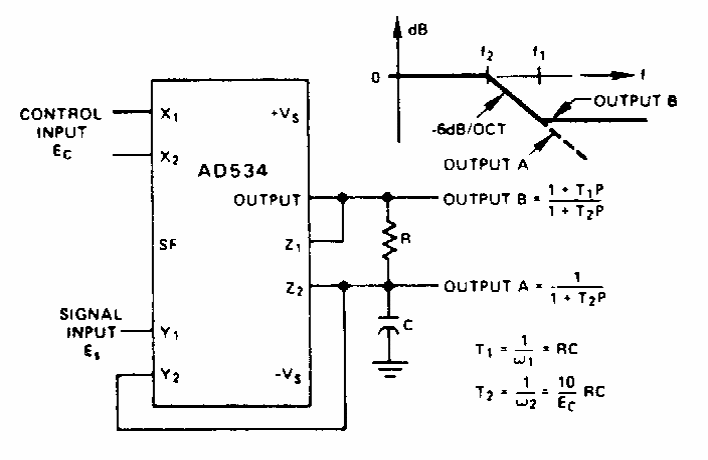

This circuit was found in 80's documentation from Analog Devices. The formulas for calculating the components as a function of frequency are given next to the diagram.




| Clique na imagem para ampliar |
