CMOS Inverter Amplifier (CB20635E)

Details
Written by: Newton C. Braga

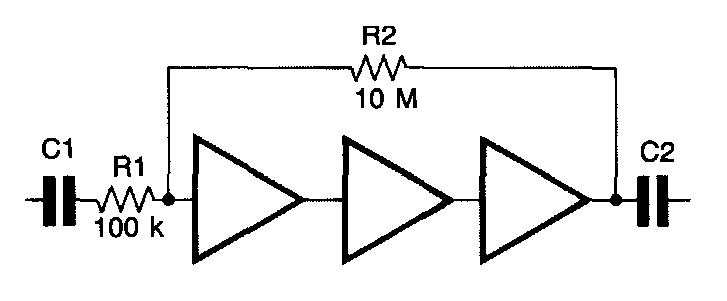

CMOS inverters can be used as amplifiers, obtaining a flat response up to approximately 20 kHz. The circuit can be supplied with voltages from 5 to 12 V and the output will have good linearity with an output of 5 Vpp for 10 V supply.




| Clique na imagem para ampliar |
