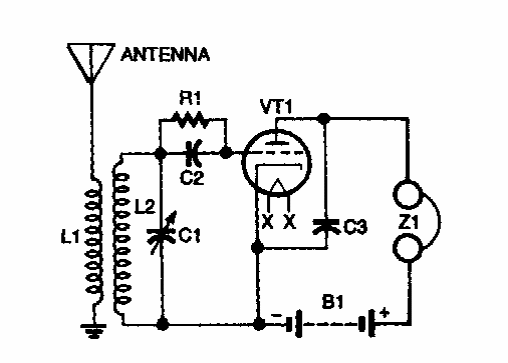

Found in an Electronics Now from the 1980s, this circuit is based on grid leakage current for signal detection. The coils depend on the frequency range and B1 is according to the filament of the triode.
RF detector with triode (CB20898E)
- Details
- Written by: Newton C. Braga
