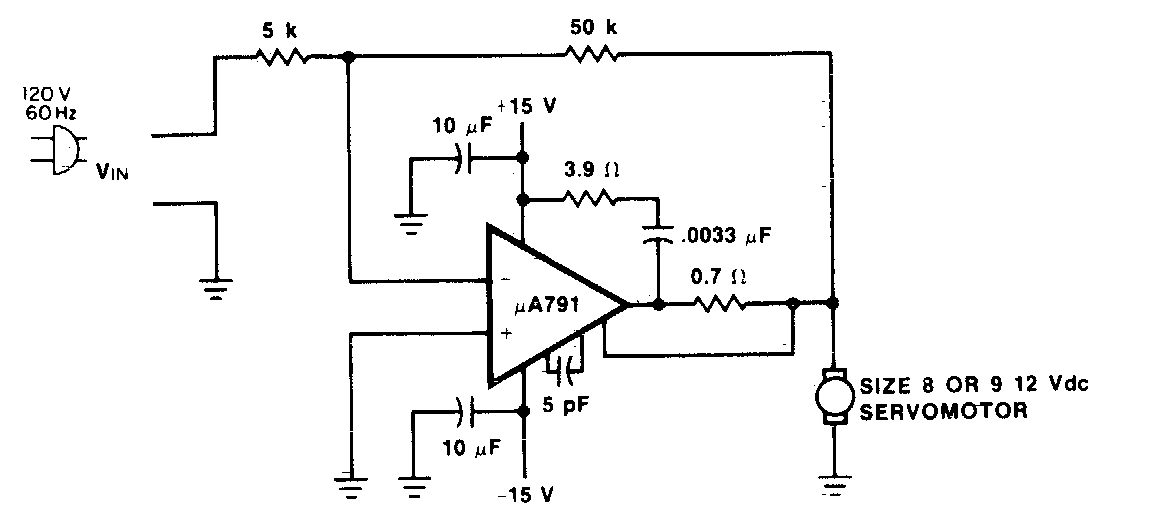

This circuit is from a publication from the 70s. The operational amplifier is from the period. Modern equivalents according to the motor current must be used.
| Clique na imagem para ampliar |
DC servo amplifier (CB20793E)
