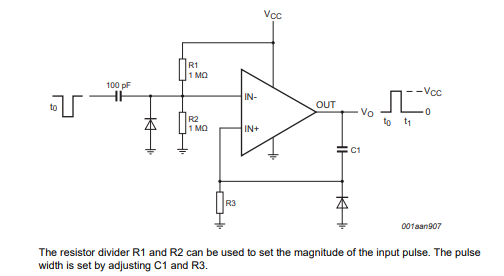

This circuit has been removed from the component's datasheet. In it we have a monostable or one-shot with the NXP NCX2220 low-voltage voltage comparator that can operate with voltages from 1.3 to 5.5 V. The circuit is from the component's datasheet.
Multivibrator NCX2220 (CB20387B)
- Details
- Written by: Newton C. Braga
