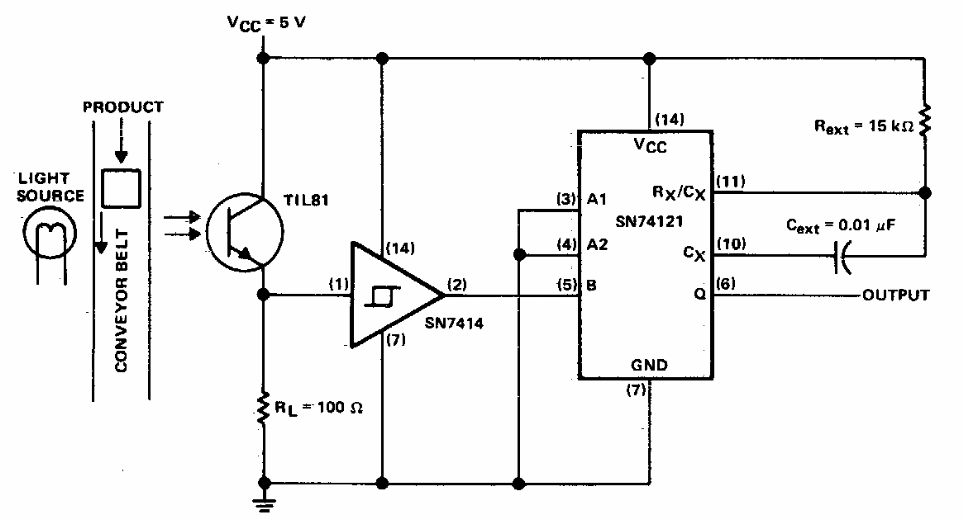

This circuit generates pulses when the light beam incident on the phototransistor is interrupted. The circuit is TTL and can function as a shield. We found it in Texas Instruments documentation.
| Clique na imagem para ampliar |
Light controlled pulse generator (CB20686E)
- Details
- Written by: Newton C. Braga
