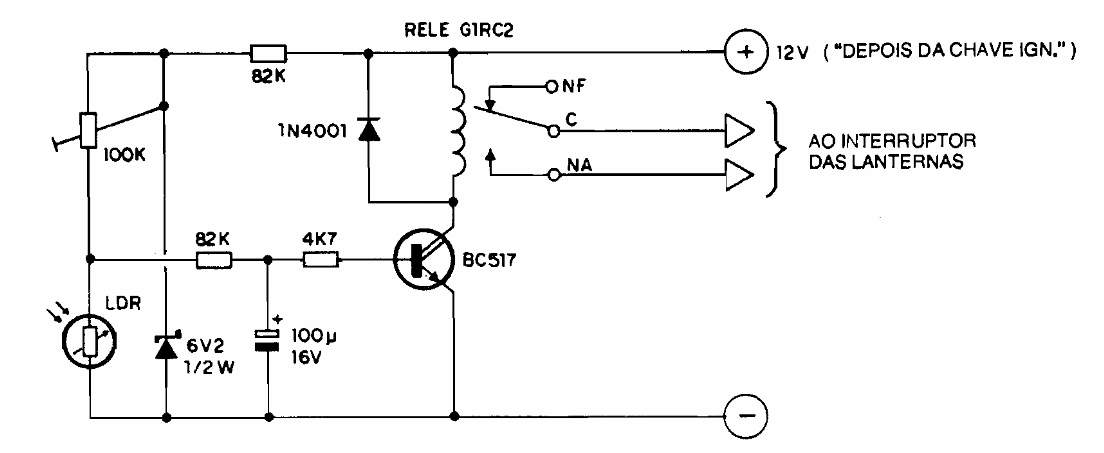

This circuit activates a relay to activate flashlights when the LDR stops receiving light. The sensitivity is adjusted in the trimpot, which can be 470 k. The transistor can be exchanged for a Darlington pair formed by two BC548.
