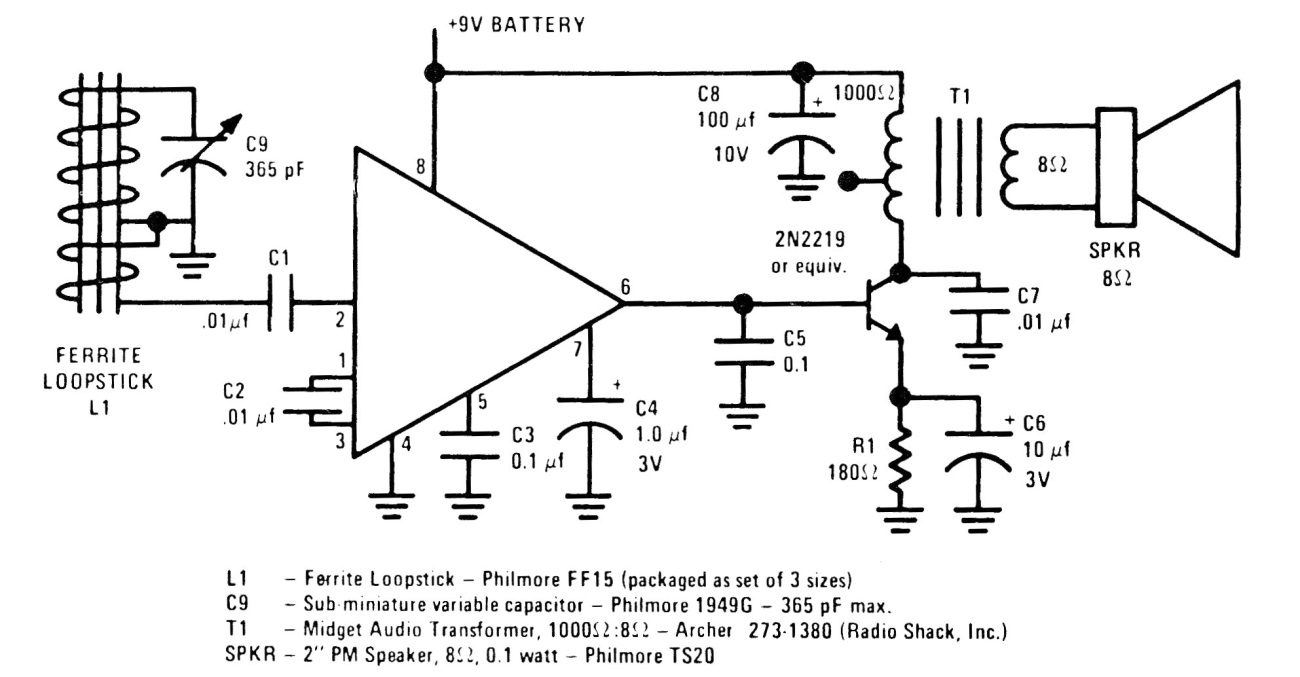

This old AM receiver with an integrated circuit came out in a documentation from the 80s. The integrated circuit is not common today, LM372, but the circuit can be tested with common operationals since the output power is very low.
