This circuit appears on this site from different sources. This is from documentation from the 1980s. The operating system used is uncommon and can be replaced by a more modern equivalent.
| Clique na imagem para ampliar |

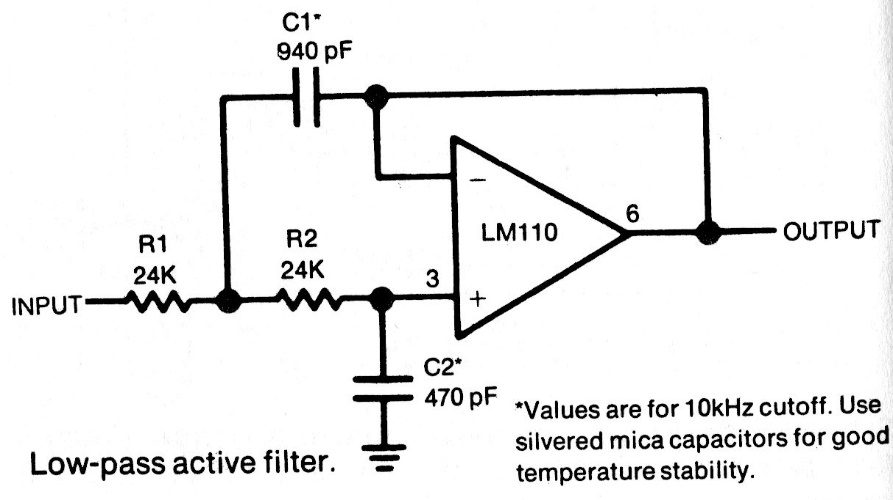

Active Low Pass Filter (CB20091E)
- Details
- Written by: Newton C. Braga
