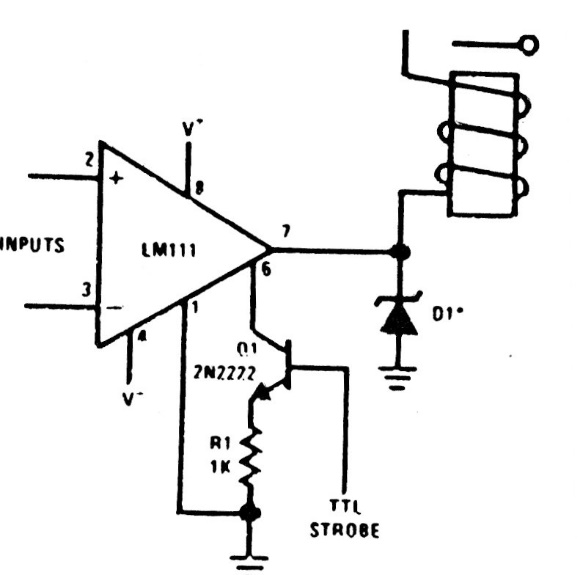

This circuit is from the LM111 manual of the 1980s. The component no longer exists, but equivalents with the same characteristics can be used. The relay is a sensitive type with low drive current.
Relay Shield LM111 (CB20168E)
- Details
- Written by: Newton C. Braga
