Four Channel Mixer (CB20014E)

Details
Written by: Newton C. Braga

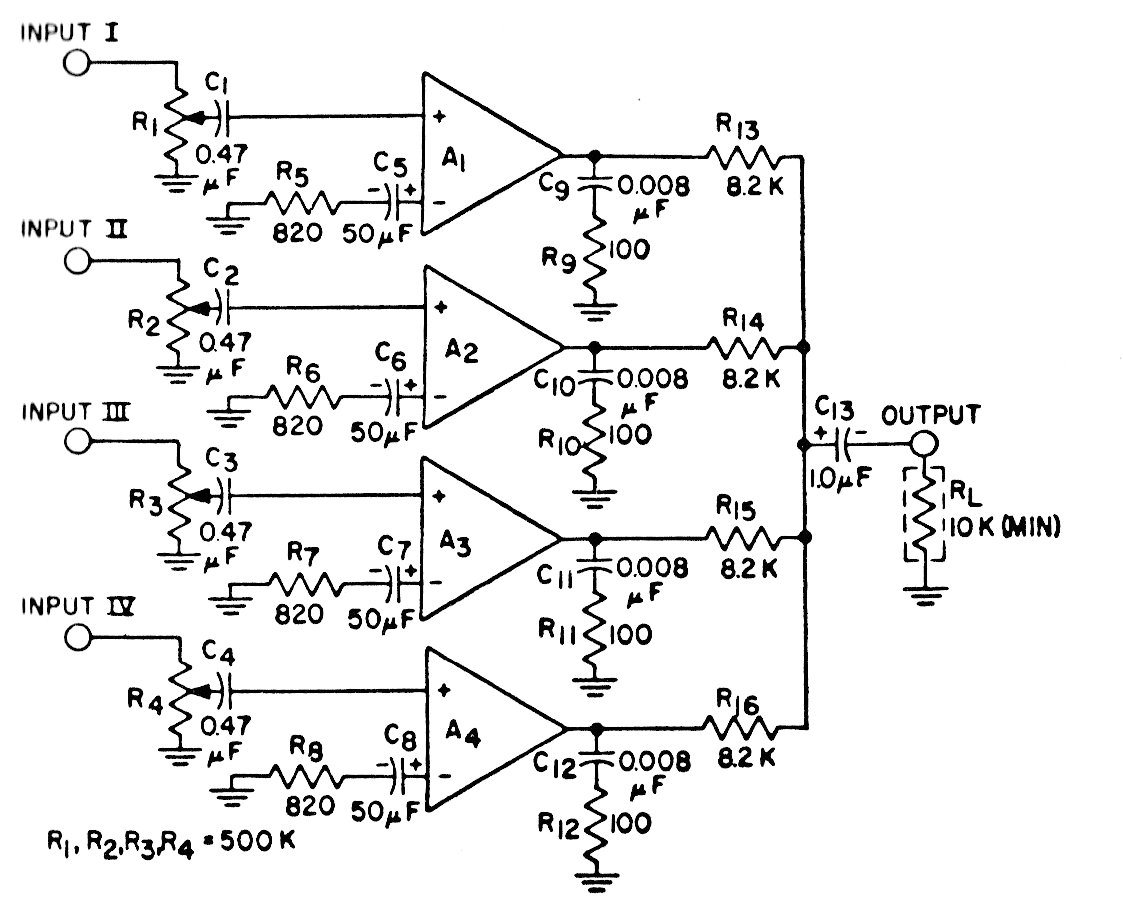

This circuit uses a quadruple operational amplifier of the time. The circuit is from the 70s but can be implemented with modern operators that require the use of a symmetrical source.




| Clique na imagem para ampliar |
