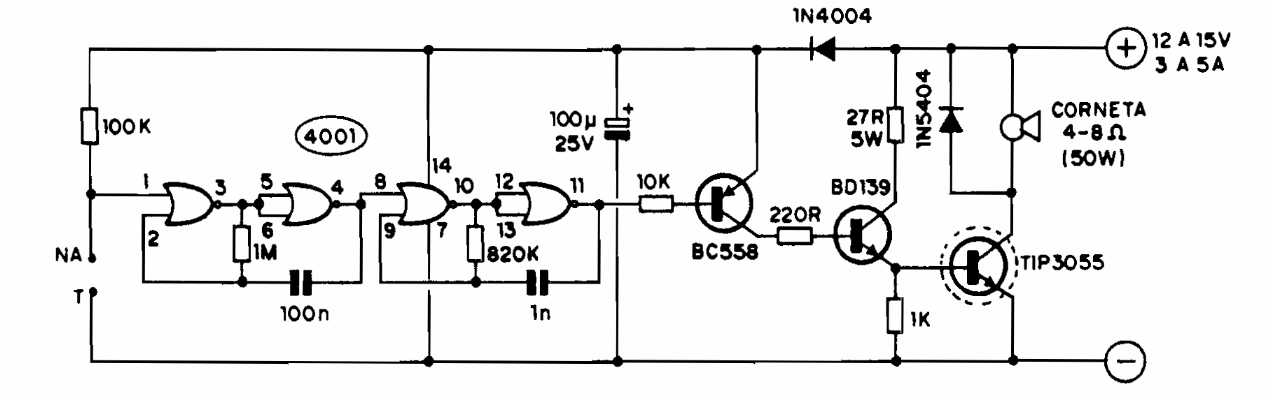

Found in old documentation this circuit uses the NOR ports of 4001. The circuit has the frequency and intermittence determined by the capacitors next to 4001. The power transistor must be equipped with a heat sink.
| Clique na imagem para ampliar |
CMOS Siren (CB20321E)
- Details
- Written by: Newton C. Braga
