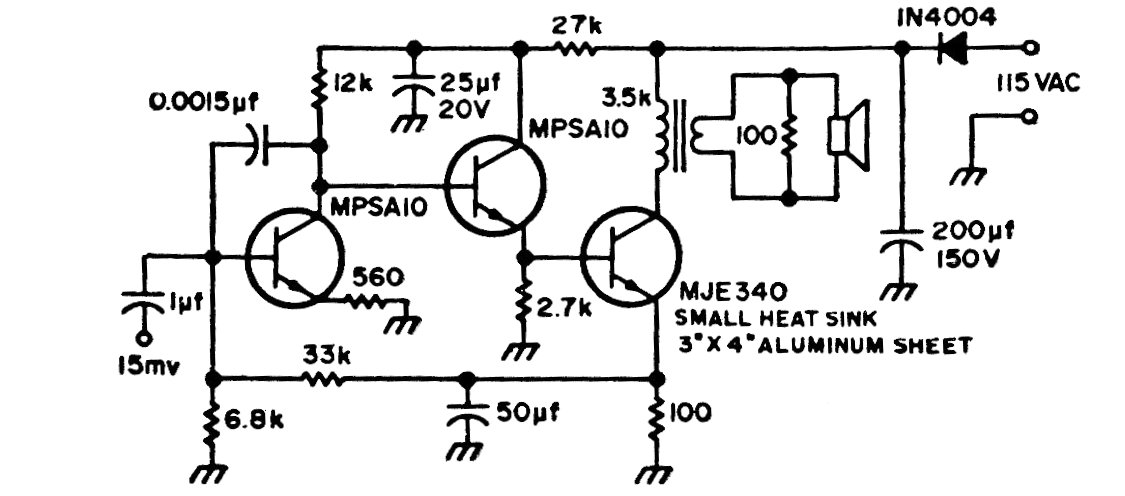

This audio amplifier from the 70's uses a high voltage transistor. The transistors are from the era and the power is 2.5 W. The circuit is from an application note from Motorola at the time.
| Clique na imagem para ampliar |
Mains Voltage Amplifier with Transistors (CB20036E)
- Details
- Written by: Newton C. Braga
