Two Transformers Power Supply (CB20209E)

Details
Written by: Newton C. Braga

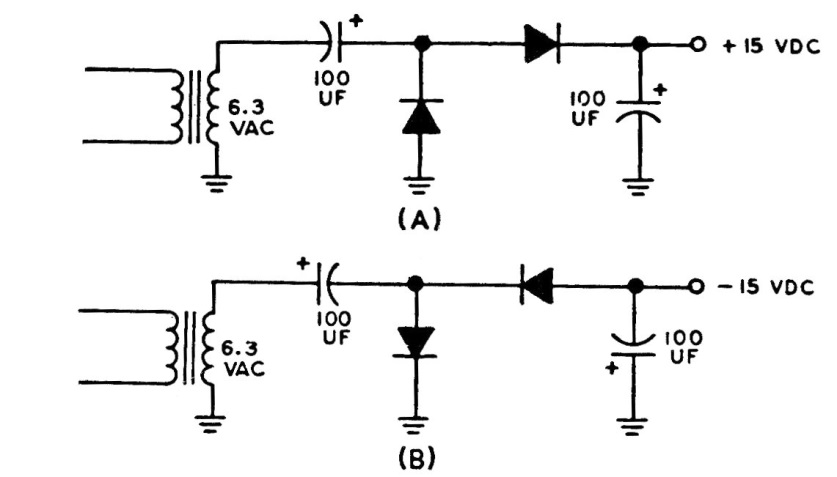

This symmetrical power supply uses two old filament transformers. The circuit was obtained in a documentation from the 80's and the diodes can be 1N4002.
