RF Sniffer (CB20248E)

Details
Written by: Newton C. Braga

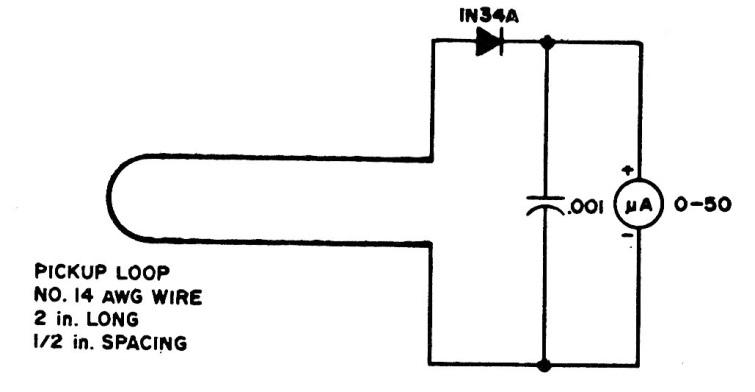

When approached by a circuit that operates with RF signals, this circuit captures them by activating the indicator instrument. The circuit operates over a wide frequency range.
