Audio Output Stage (CB20037E)

Details
Written by: Newton C. Braga

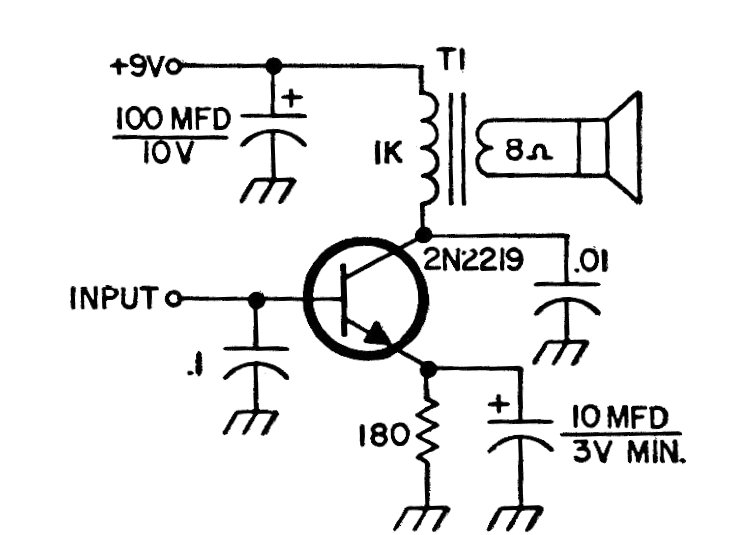

This simple step of low power audio is from a 1975 documentation. The transistor can be a BC548, and the transformer of the type found in small transistor radios and recorders of the time.




| Clique na imagem para ampliar |
