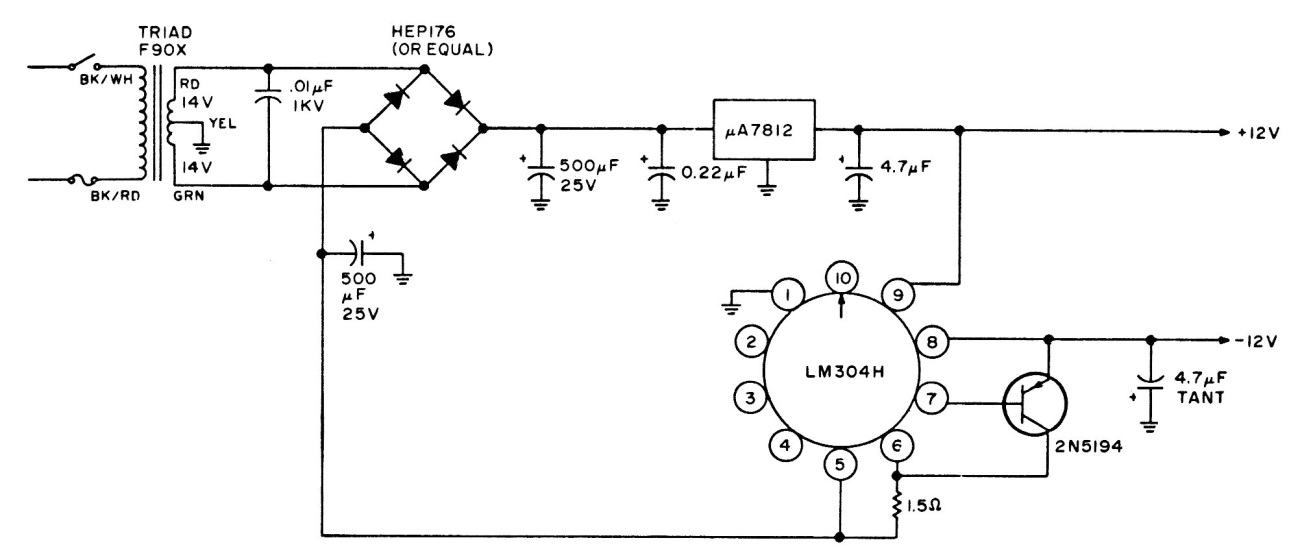

This circuit uses a 7812 and another regulator integrated circuit that is not very common nowadays. The same configuration can be adapted to use a 7912 which is the negative pair of the 7812. The 7812 must have a heatsink. The transistor can be a TIP31 if the original configuration is adopted.
