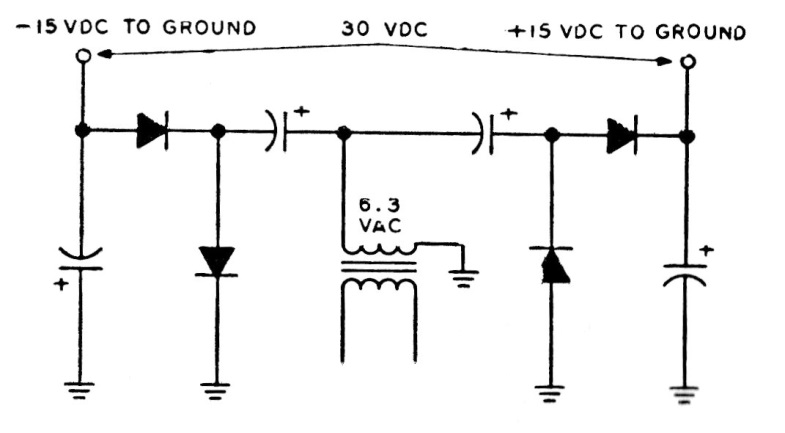

This circuit provides a symmetrical voltage of 15 V output from the 6.3 V secondary of a small transformer. The diodes can be 1N4002 and capacitors from 10 to 100 uF according to the desired current at the output.
| Clique na imagem para ampliar |
Symmetrical Voltage Doubler (CB20190E)
