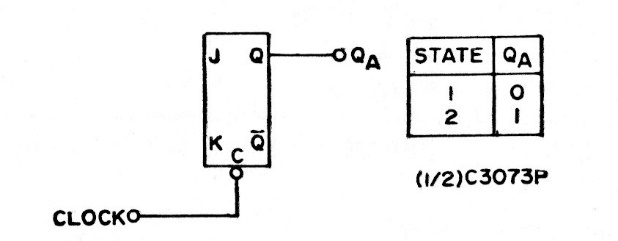

This circuit that applies to both TTL and CMOS logic uses a J-K flip-flop, and the maximum frequency depends on the logic used. The circuit is from an old documentation, but totally valid nowadays.
Synchronized Divider by 2 (CB20099E)
- Details
- Written by: Newton C. Braga
