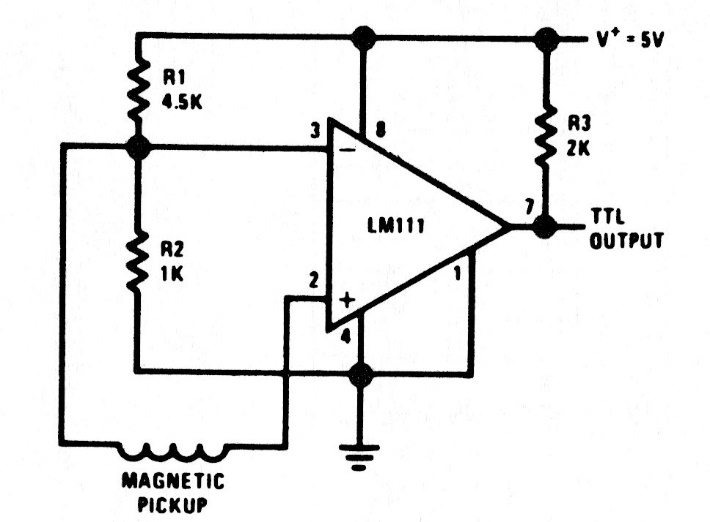

Magnetic Transducer Amplifier (CB20018E)

Details
Written by: Newton C. Braga



This circuit appears at various points on this site and in this section and can be designed with almost any operational amplifier. This version is from an American documentation from 1975.
