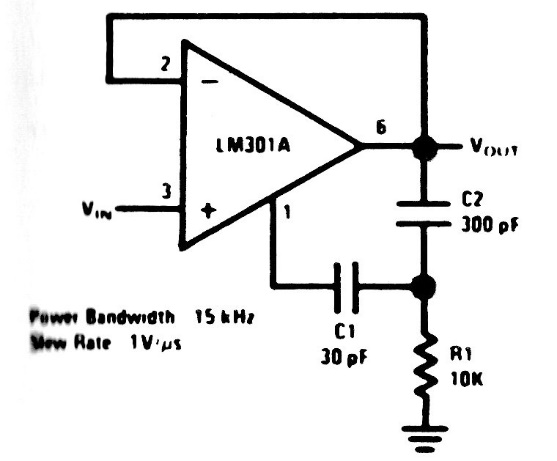

In the figure we have the way to compensate an operational amplifier. The circuit is valid for types that do not have this feature internally. We found the configuration in an old factory manual from the 80s.
Operational Compensated LM101 (CB20153E)
