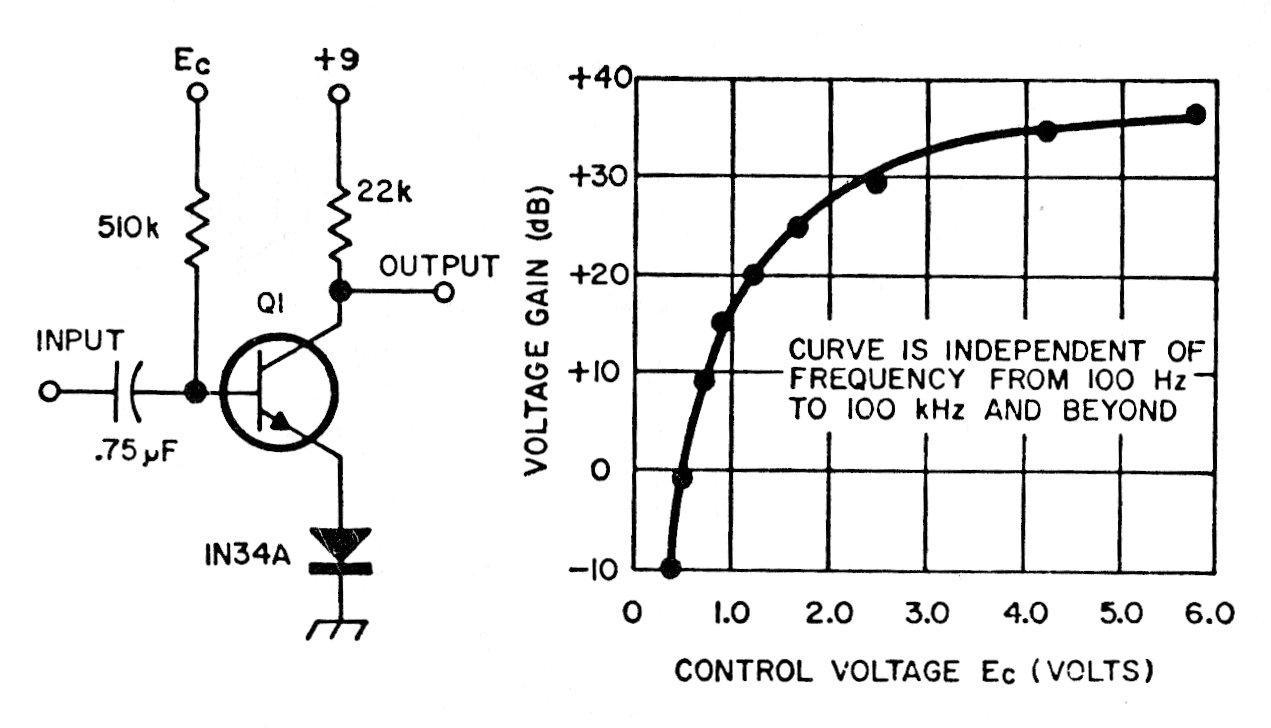

This transistorized stage has its gain controlled by an external voltage as shown in the graph next to the diagram. The circuit is from a 1975 documentation valid for most general-purpose transistors.
| Clique na imagem para ampliar |
Voltage Controlled Transistor Amplifier (CB20056E)
- Details
- Written by: Newton C. Braga
