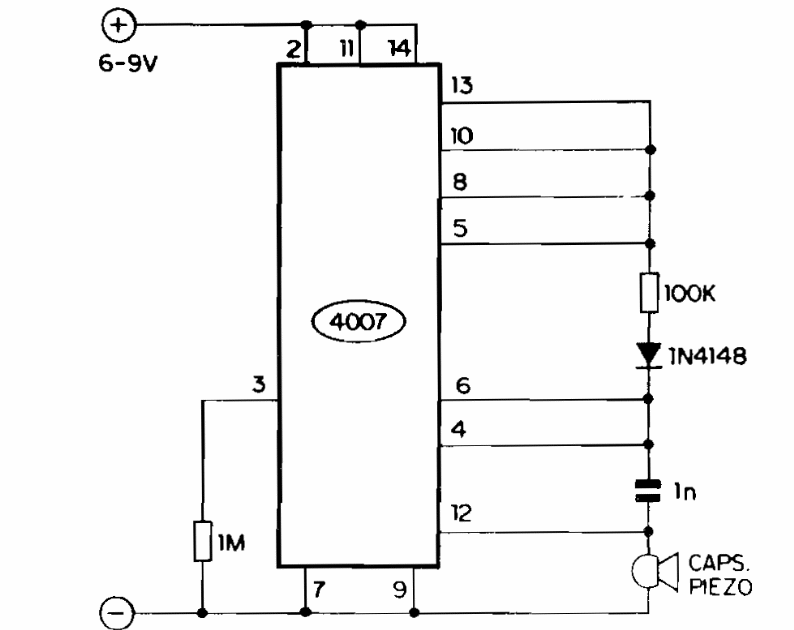

This circuit produces the ticking of a clock on a common piezoelectric transducer. The circuit has an extremely low consumption and the 1 nF capacitor can be changed according to the desired frequency.
| Clique na imagem para ampliar |
Low Consumption Pulsator (CB20346E)
- Details
- Written by: Newton C. Braga
