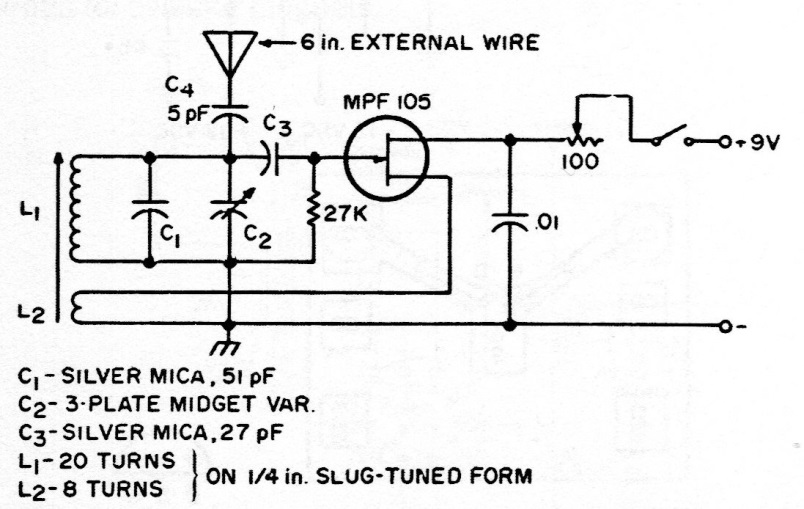

This small telegraph transmitter has a range of a few meters, operating at a frequency that depends on the coils. The FET can be of any type and the power is provided by a 9 V battery. In this case, the band is short wave.
