10 Hz to 220 kHz amplifier (CB20228E)
- Details
- Written by: Newton C. Braga

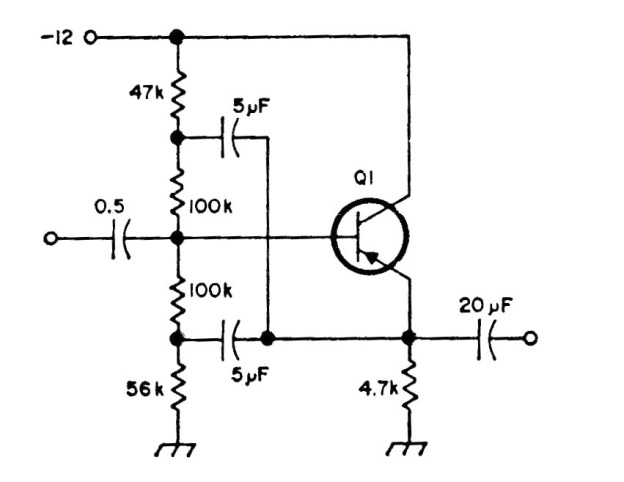

This amplifier has an input impedance of 20 M ohms. We found it in documentation from the 1980s. The transistor can be any PNP of RF and even an NPN if we invert the power.
