Quick Adder (CB20155E)

Details
Written by: Newton C. Braga

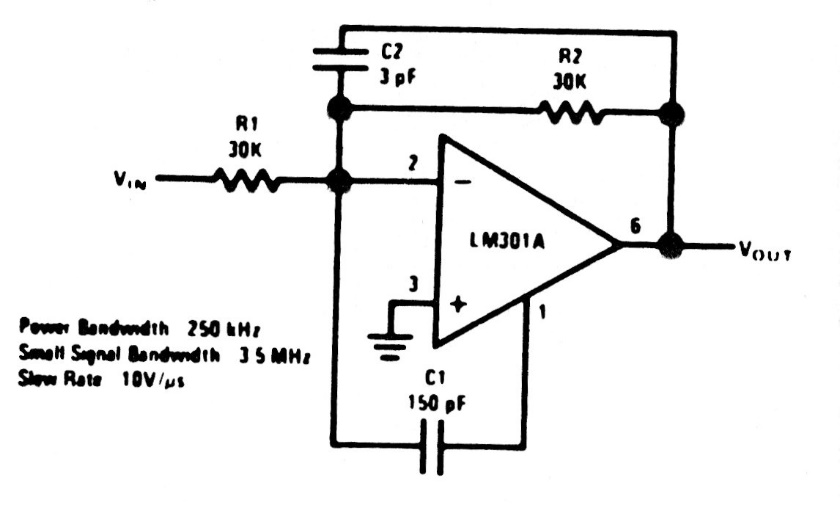

This is a factory circuit from an 80's manual. The circuit can be implemented with modern operationals and the power supply must be symmetrical.
