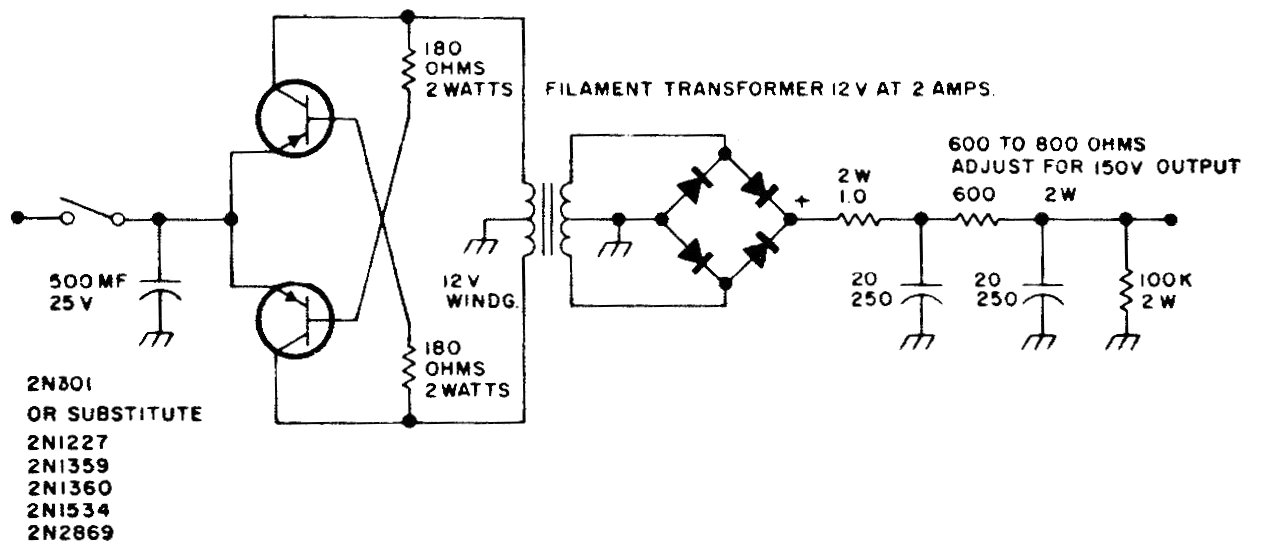

This circuit provides a high voltage for supplying tube or other circuits from a 12 V battery. The transformer determines the performance, and the transistors admit more modern equivalents, since the original circuit is from 1975.
