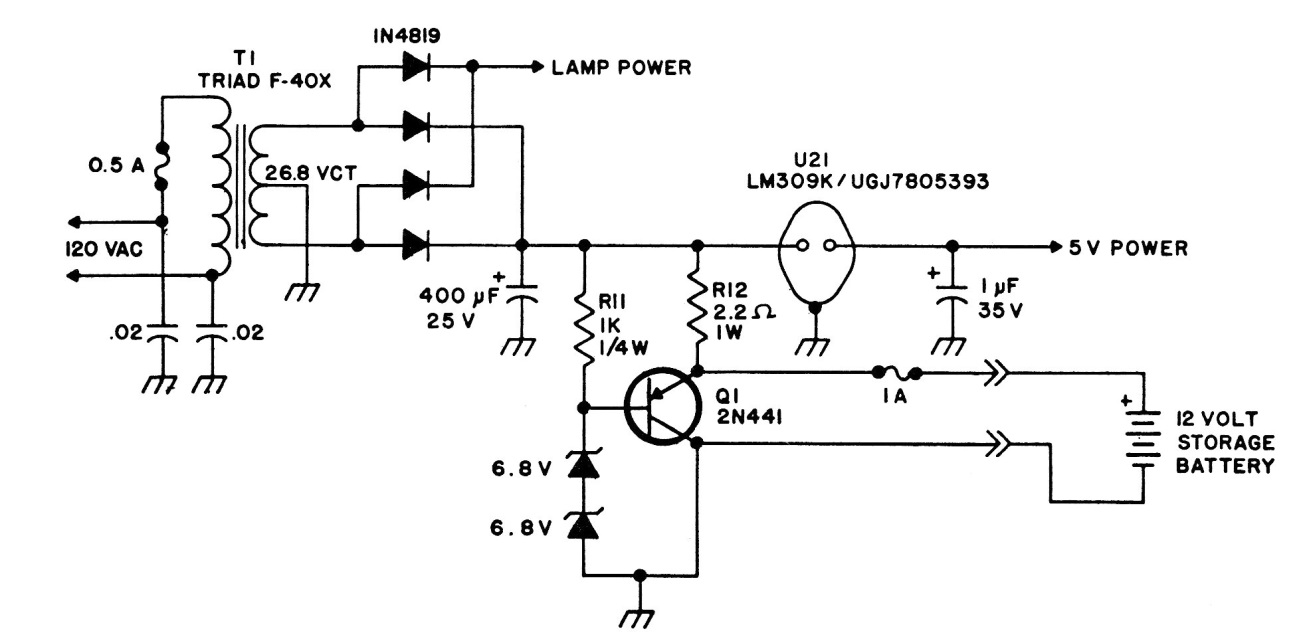

This 1980s power supply uses a battery to prevent interruption of the power supply in the event of a power cut. The regulating transistor is of an uncommon type today, but equivalents can be used in a similar configuration. The voltage regulator must be equipped with a heat sink.
| Clique na imagem para ampliar |
