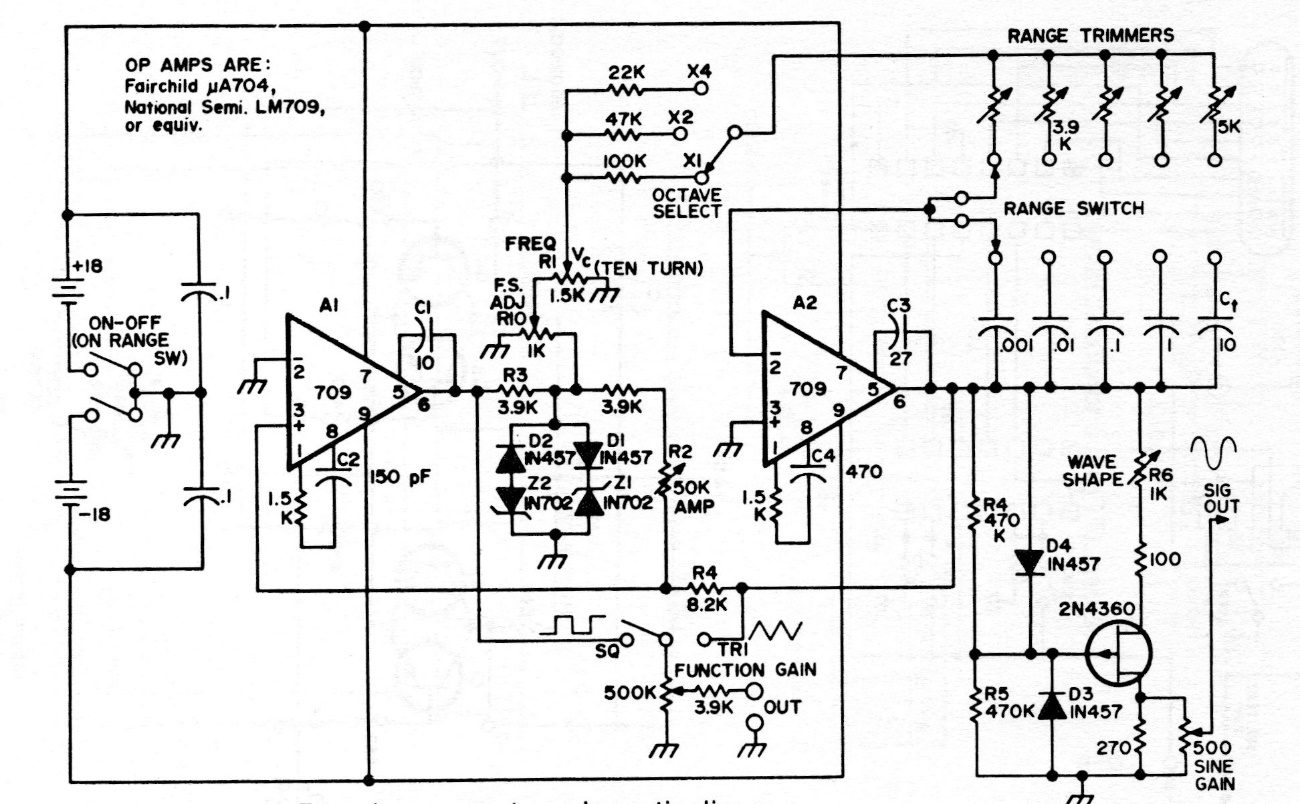

The 709 integrated circuit is not common today. The circuit is from American technical documentation from the 1980s. The power supply must be symmetrical. The circuit has 5 frequency bands producing three different waveforms.
| Clique na imagem para ampliar |
