This amplifier configuration with the LM111 uses cut-off diodes (Clamp) to improve the response. The configuration can be used with more modern equivalent operationals, as it is from an 80s manual.
| Clique na imagem para ampliar |

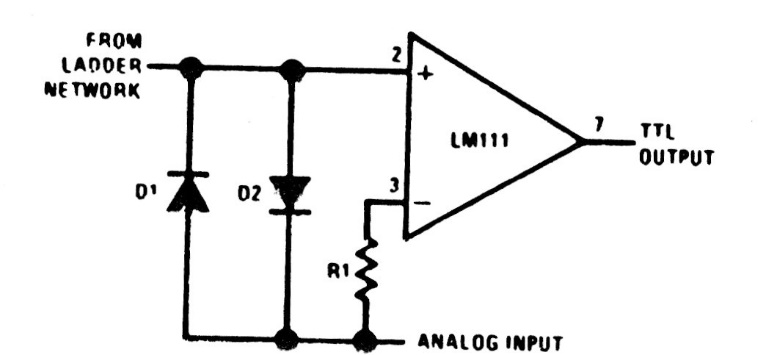

Amplifier with Clipping Diodes (CB20157E)
