Zero Crossing Detector (CB20158E)

Details
Written by: Newton C. Braga

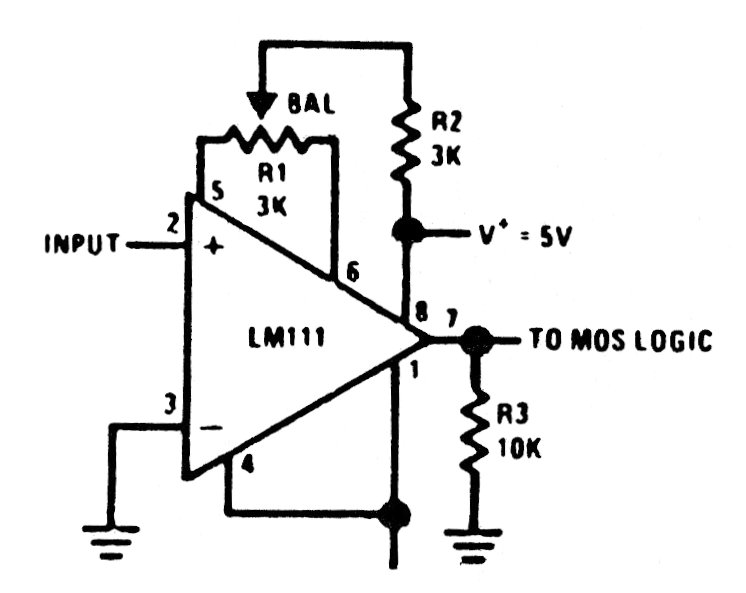

This configuration with the LM111 was found in your factory manual. The circuit can be implemented with modern operational equivalents. The power supply must be symmetrical.
