Pulse Generator (CB20125E)

Details
Written by: Newton C. Braga

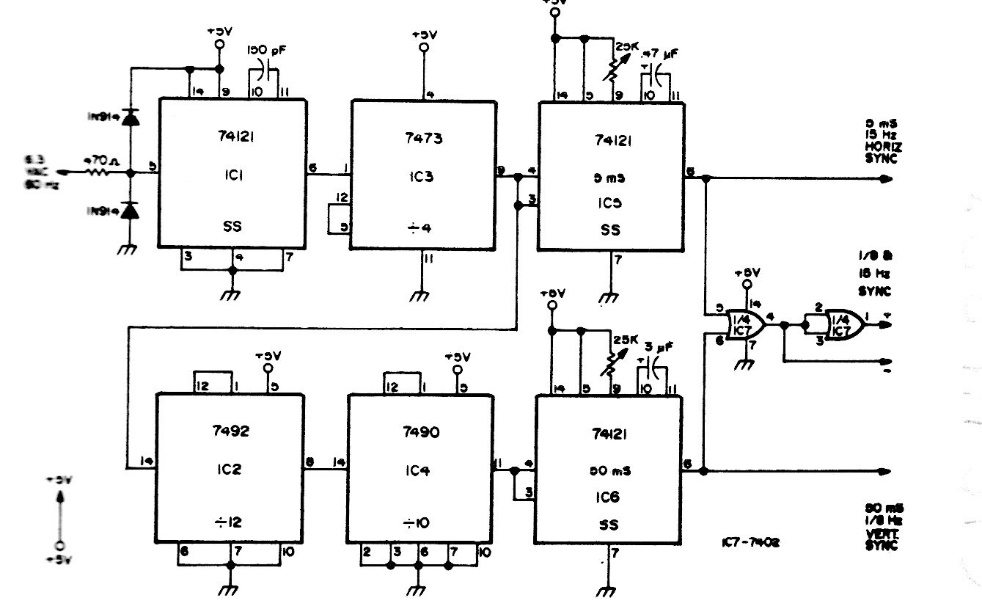

Originally this circuit was created to produce synchronism pulses in TV cameras SSTV (Low scan frequency), however it can be adapted for other purposes. The integrated circuits are common TTL.




| Clique na imagem para ampliar |
