Tone encoder (CB20351E)

Details
Written by: Newton C. Braga

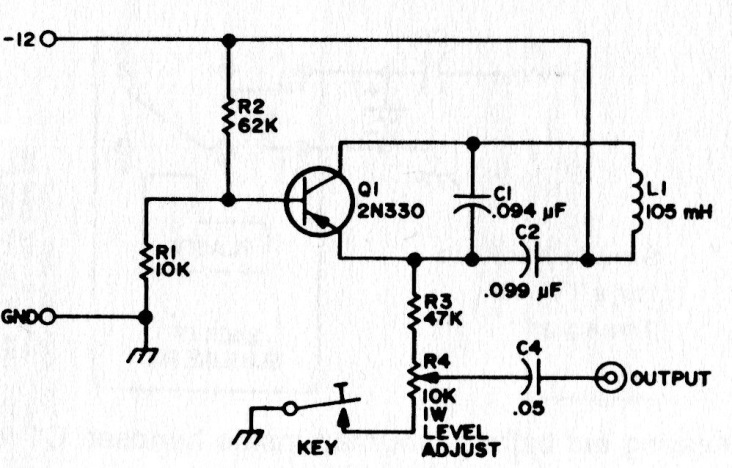

This circuit was found in documentation for radio amateurs of the 1980s. The circuit is intended to produce a tone for modulation in telegraphic transmissions.
